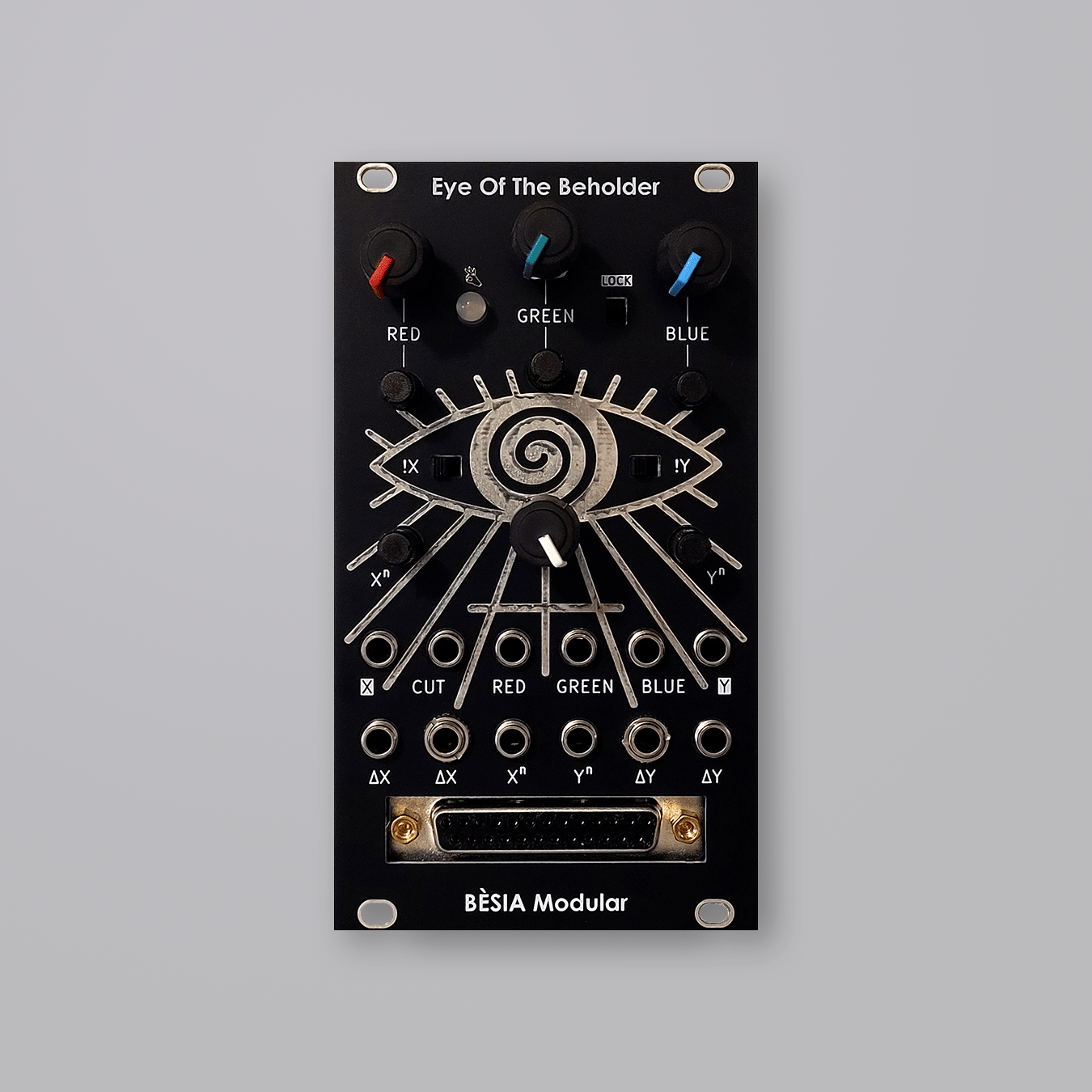

Eye Of The Beholder (built upon request)

The EOTB is an analog Eurorack module that allows you to use modular signals to control any laser device equipped with an ILDA port (the old school DB-25 connector). Please note that I refer to lasers like the Laserworld DS series or similar, check it out before proceeding.

BEFORE BUYING PLEASE READ CAREFULLY THE 'FURTHER NOTE' BELOW

Width: 14 HP

Featuring:
- Full analog circuit!
- Differential output pairs, low output impedance as required by ILDA standard
- A Low Pass Filter in the middle of X/Y signal path to enhance your creativity
- Individual controls over X and Y scale with semi-normalled VCAs
- DC coupled signal path

Manual and voltage control over:
- R, G, B levels with dedicated attenuators
- X, Y positions and scales
- LPF cutoff

Plus: X/Y buffered outputs, X/Y inverters, interlock on/off switch, rear microswitches to adjust the cutoff point of LPF

Manual and other specs: coming soon.

FURTHER NOTE: This item is currently built upon request since it's an artisan work even though the Eye Of The Beholder is engineered and RoHS compliant, for this reason please take into account 3-4 weeks of waiting, starting from the date of payment. For the same reason, returns are not allowed, BUT I personally test every single module before shipping so, it will work ;-) last but not least, EOTB is an INTERFACE, so it can generate RGB colors, but you still have to feed it with your own signal source like VCOs or LFOs to move the laser beam.
